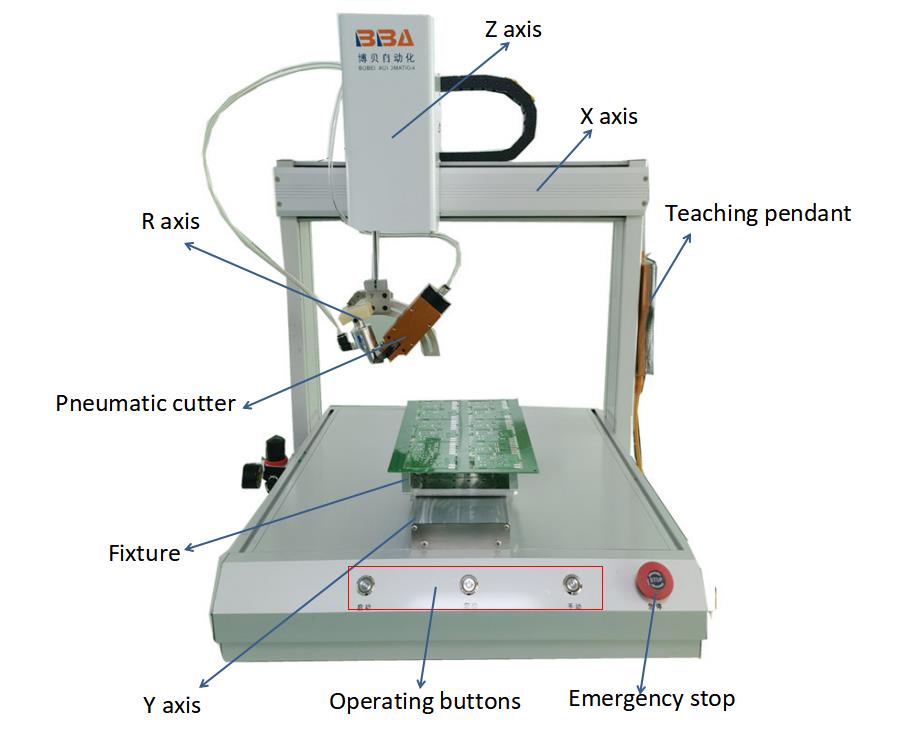

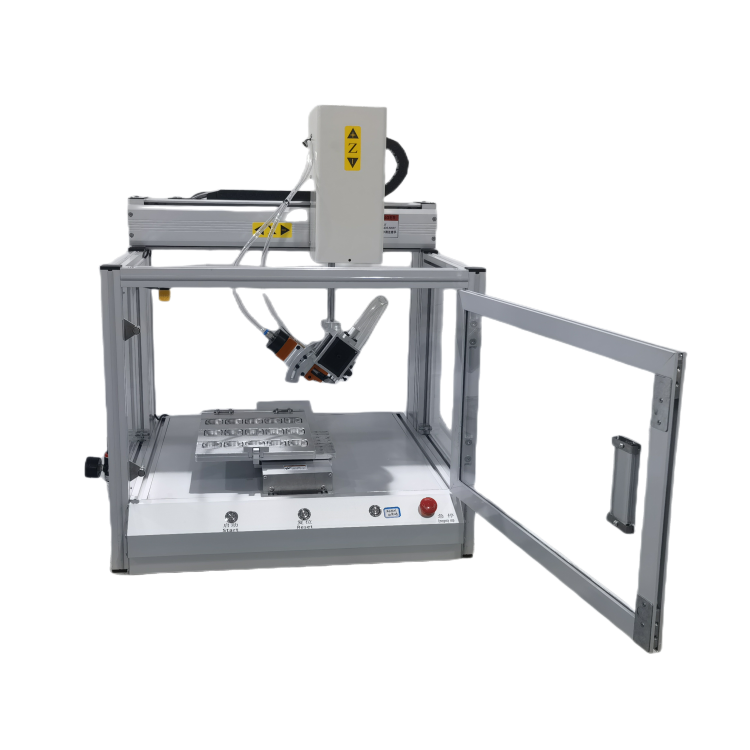

BBA PCB Lead Leg Cutting Machine Capacitor Pin Automatic Cutter with Safety Cover is mainly to cut the extra pin after THT components soldering. Machine with safety cover to ensure worker's safety. Fast blade cutter to realize high efficiency. Univesal product fixture to meet different PCB board size.
| Quantité: | |
|---|---|
BBA-331CU
BBA
| Model | BBA-331CU |
| Voltage | AC110/220V 50/60HZ |
| Working platform | 300**300*100 mm (can be customized) R axis: 360° |
| Maximum load weight | 8KG (For work platform) |
| Repeated Precision | +/-0.03MM |
| Operation system | Teaching pendant |
| Program Capacity | 1000 files, 8000points per set |
| Data Storage Type | USB Disk |
| Movement pattern | Point to point in XYZ axis, Continuous line, arc |
| Cutting efficiency | 6000-7500 points per hour |
| Cutting capacity | Copper wire ≤ Φ3.0mm(change different cutters according to wire diameters) |
| Driving Mode | Precision Stepping Motor + Synchronous belt |
| Weight | 90(KG) |
